Intelli-Plate 48-3 (Art Robbins Instruments)

Applications

  • Sitting Drop Crystallization

Features

  • SBS microplate footprint
  • Intelli-Plate 48-3 Drop Volume: 4 µl Reservoir: 500 µl
  • 48 well plates can be set up by hand or using 8-channel dispensers
  • Plate material: Polystyrene

Description

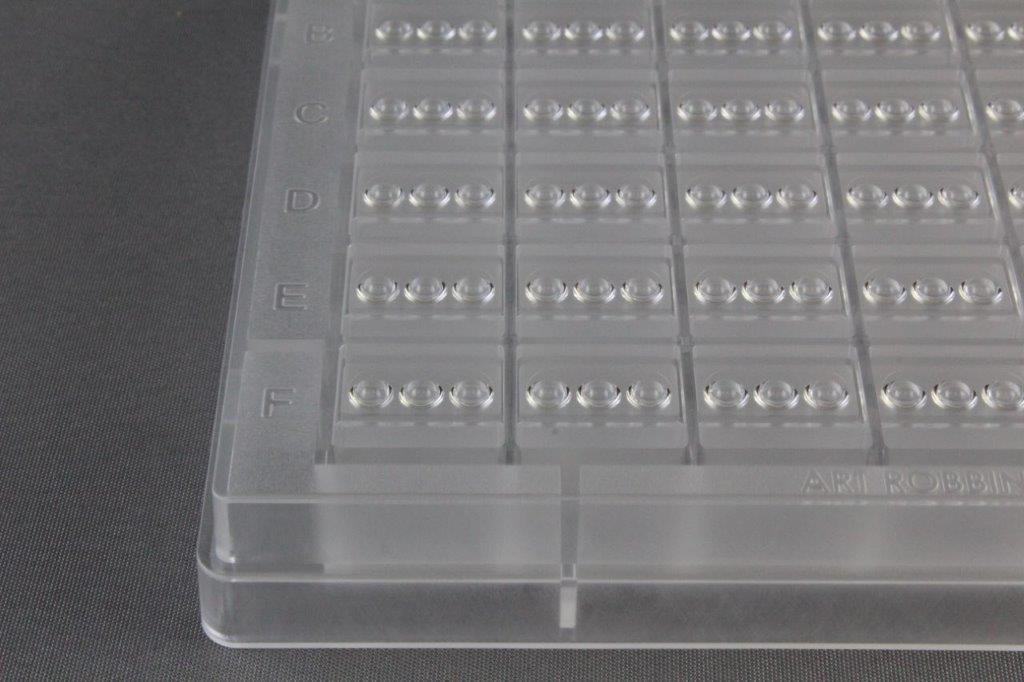

The Intelli-Plate 48-3 (Art Robbins 102-0003-00) is a 48 well sitting drop plate for screening. The plate features 6 reagent wells along the y-axis (A-F) and 8 reagent wells along the x-axis (1-8). The reagent reservoir is typically filled with 200 µl and is capable of holding up to 500 µl. The screening drop wells are arranged at the top of each well. The three sample drop wells each hold 4 µl or less. Plates are made of polystyrene.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

The height of the Intelli-Plate 48-3 is 0.560 inches.

Show More



Intelli-Plate 48-3 (Art Robbins Instruments)

Click to Zoom In

Intelli-Plate 48-3 (Art Robbins Instruments)
Intelli-Plate 48-3 (Art Robbins Instruments)
Intelli-Plate 48-3 (Art Robbins Instruments)
Intelli-Plate 48-3 (Art Robbins Instruments)
Intelli-Plate 48-3 (Art Robbins Instruments)

CAT NO

HR8-154

NAME

Intelli-Plate 48-3

DESCRIPTION

10 plate case

PRICE

$91.00

cart quote

CAT NO

HR8-156

NAME

Intelli-Plate 48-3

DESCRIPTION

40 plate case

PRICE

$336.00

cart quote

Support Material(s)

Intelli-Plate 48-3 (Art Robbins Instruments) Plate drawing Intelli-Plate 102-0003-00

Related Item(S)

  • ClearSeal Film™ and Applicator
  • Crystal Clear Sealing Tape
  • Crystal Clear Sealing Film
